Maximum Working Pressure 175PSI
Maximum Gallons Per Minute 120
Maximum Head Produced 147 FT.
Maximum Seal Cavity Temp Buna-N 225˚F
Maximum Horsepower 3

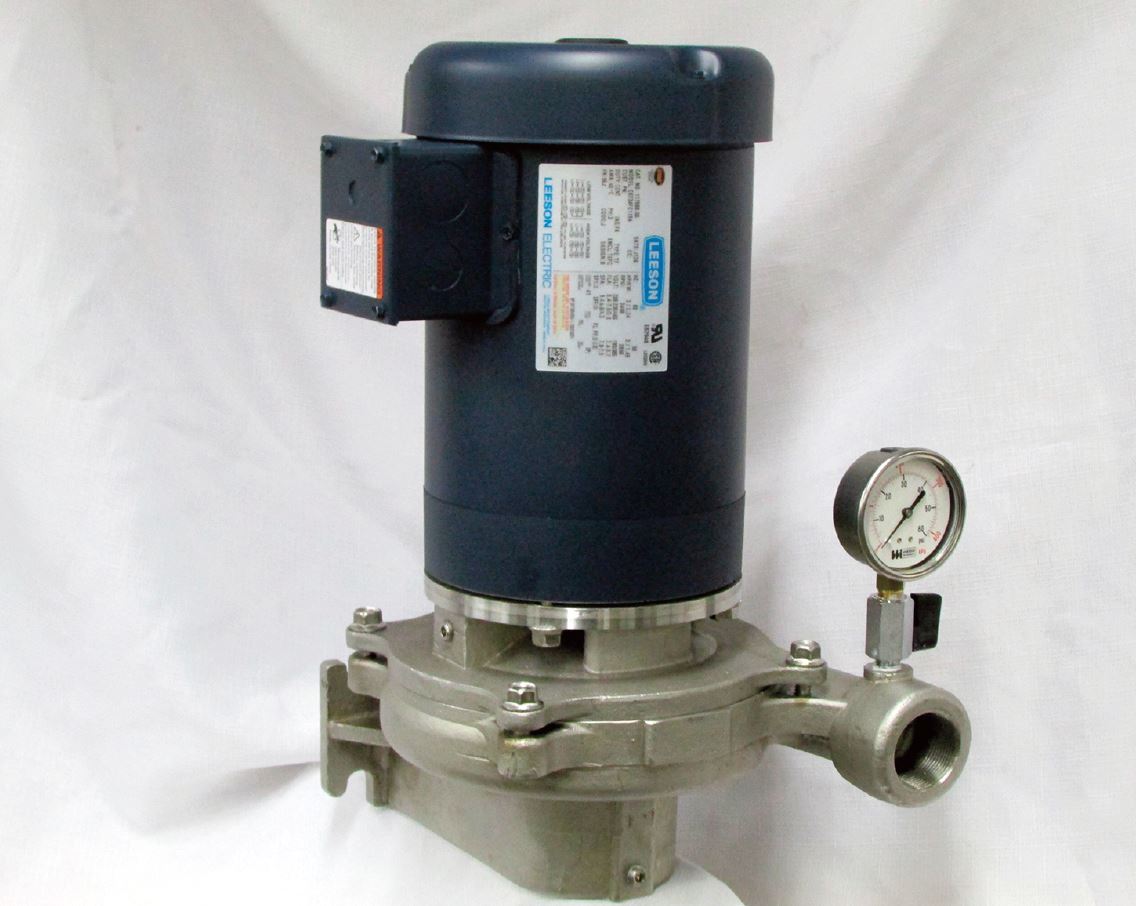

Constructed of cast 304 stainless steel, 1/8 npt drain port and 1/4 npt discharge tappings are standard. Back pull out design allows the pump to be serviced without disturbing the piping. The volute was designed to maximize hydraulic efficiency.
Type 21 buna-n seal is rated to 225°F and pressure to 175PSI. Carbon seal face mates with the ceramic seat providing years of trouble free service. Alternate seals available upon request.
The hydraulic design of the impeller maximizes pressure and gpm while minimizing horsepower. The enclosed impeller is made of cast 304 stainless steel.
The precise machining of the adapter allows for easy assembly of the pump. A 1/8 npt hole is provided if a seal flush line is added. Construction consists of cast 304 stainless steel.
The NEMA 56J motor utilizes a 416 stainless steel shaft. The motor’s heavy duty ball bearings withstand axial and radial thrust loads with no problem. Standard Enclosure type is drip proof but alternates are available.
