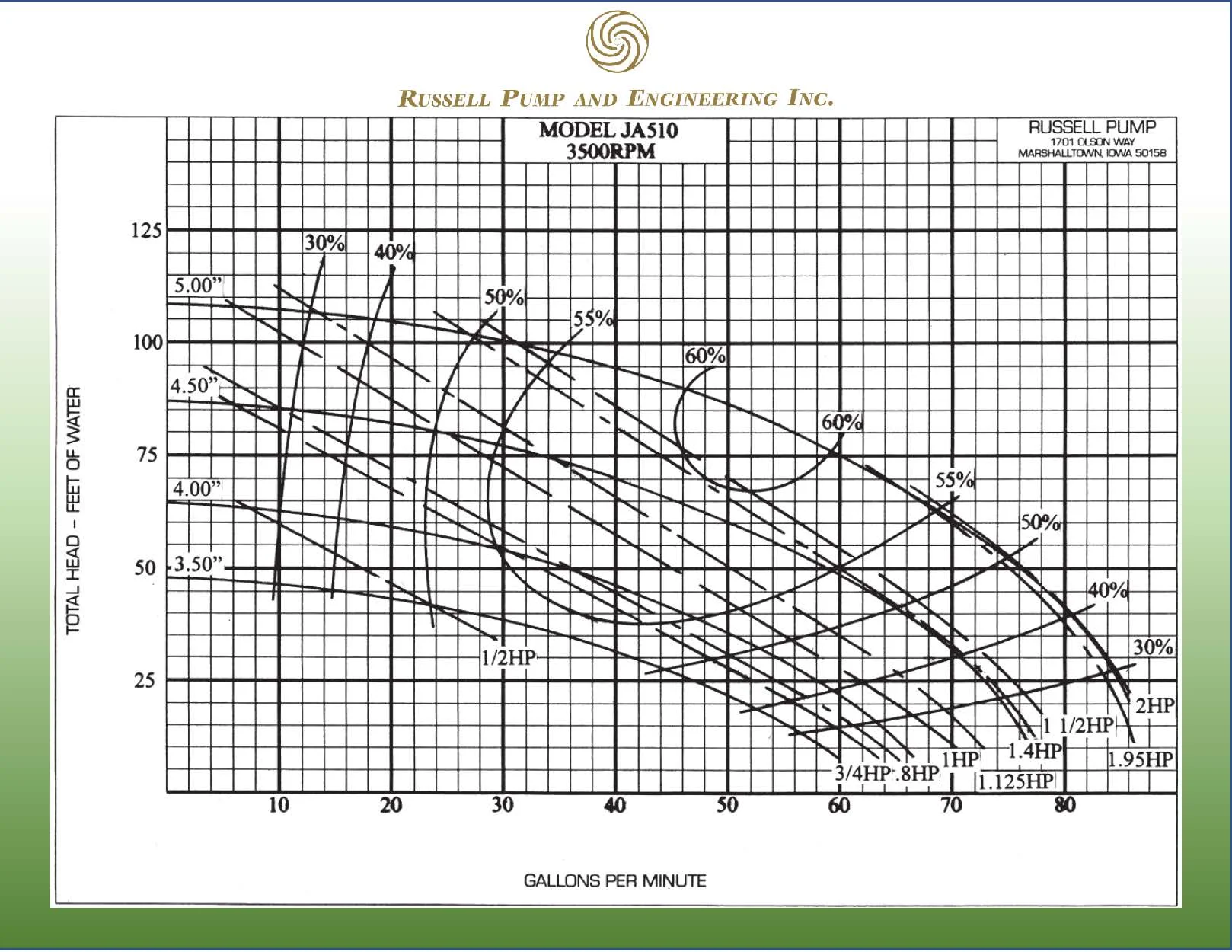

JA510 Capabilities
Maximum Working Pressure 175PSI
Maximum Gallons Per Minute 82
Maximum Head Produced 105 FT.
RPM 3450

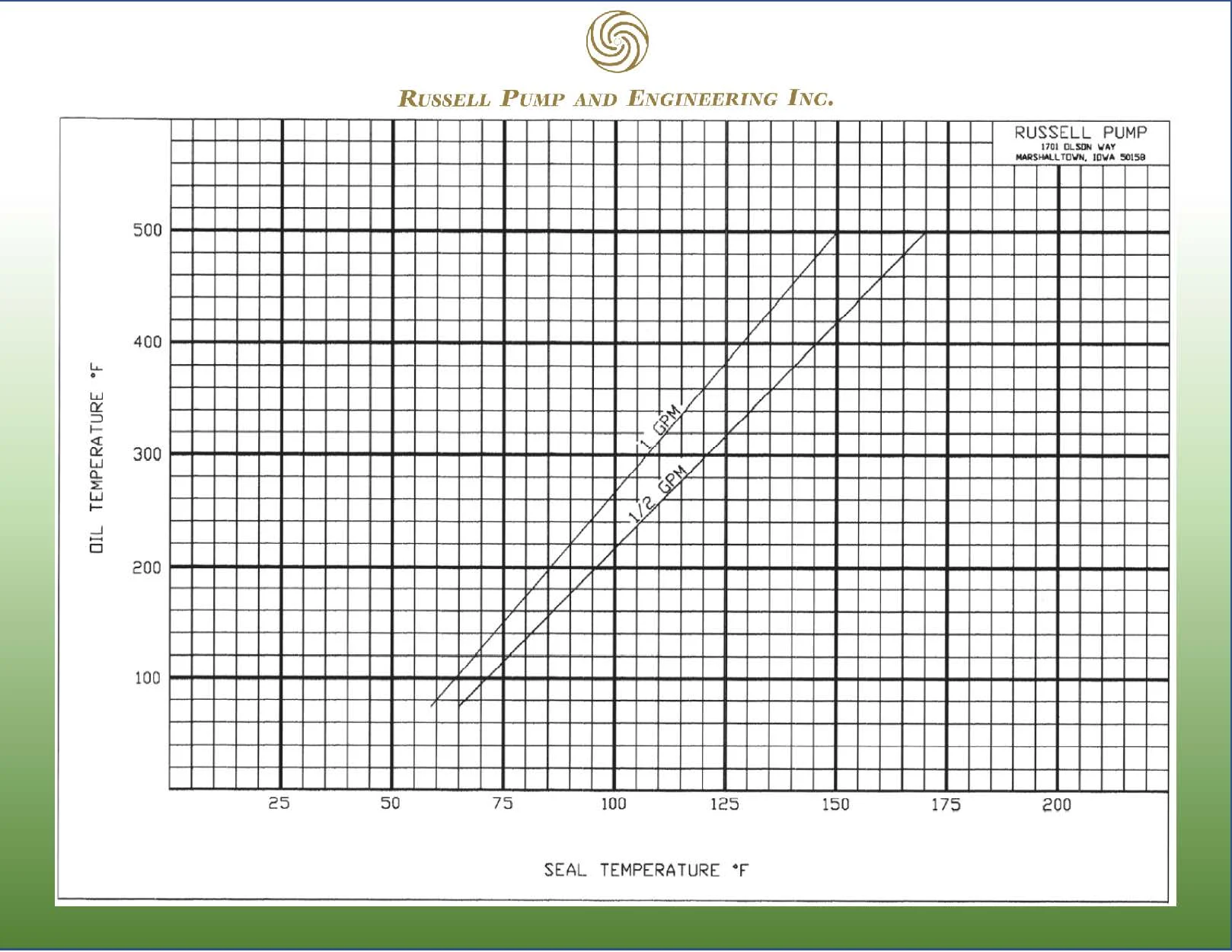

Maximum Seal Cavity Temp 500 F
Maximum Horsepower 3
Design Features
Casing
Constructed as ASTM A48 class 30 cast iron. The discharge can be mounted in any 90° position. Drain and air ports are also positioned every 90°, 1/4 npt suction and discharge tappings are standard. Back pull out design allows the pump to be serviced without disturbing the piping. The volute was designed to maximize hydraulic efficiency.
Mechanical Seal
Type 21 viton seal is rated to 400°F and pressures to 175PSI. Carbon seal face mates with the ceramic seat providing years of trouble free service.
Impeller
The hydraulic design of the impeller maximizes pressure and gpm while minimizing horsepower. The enclosed vacuum cast impeller is made of CDA87500 silicon bronze. The impeller has a pressed-on throttle bushing which fits snugly into the adapter to restrict fluid circulation.
Adapter
The hydraulic design of the impeller maximizes pressure and gpm while minimizing horsepower. The enclosed vacuum cast impeller is made of CDA87500 silicon bronze. The impeller has a pressed-on throttle bushing which fits snugly into the adapter to restrict fluid circulation.
Motor
The NEMA 56J motor utilizes a 416 stainless steel shaft. The motor’s heavy duty ball bearings withstand axial and radial thrust loads with no problem. Standard enclosure type is drip-proof but alternates are available.
